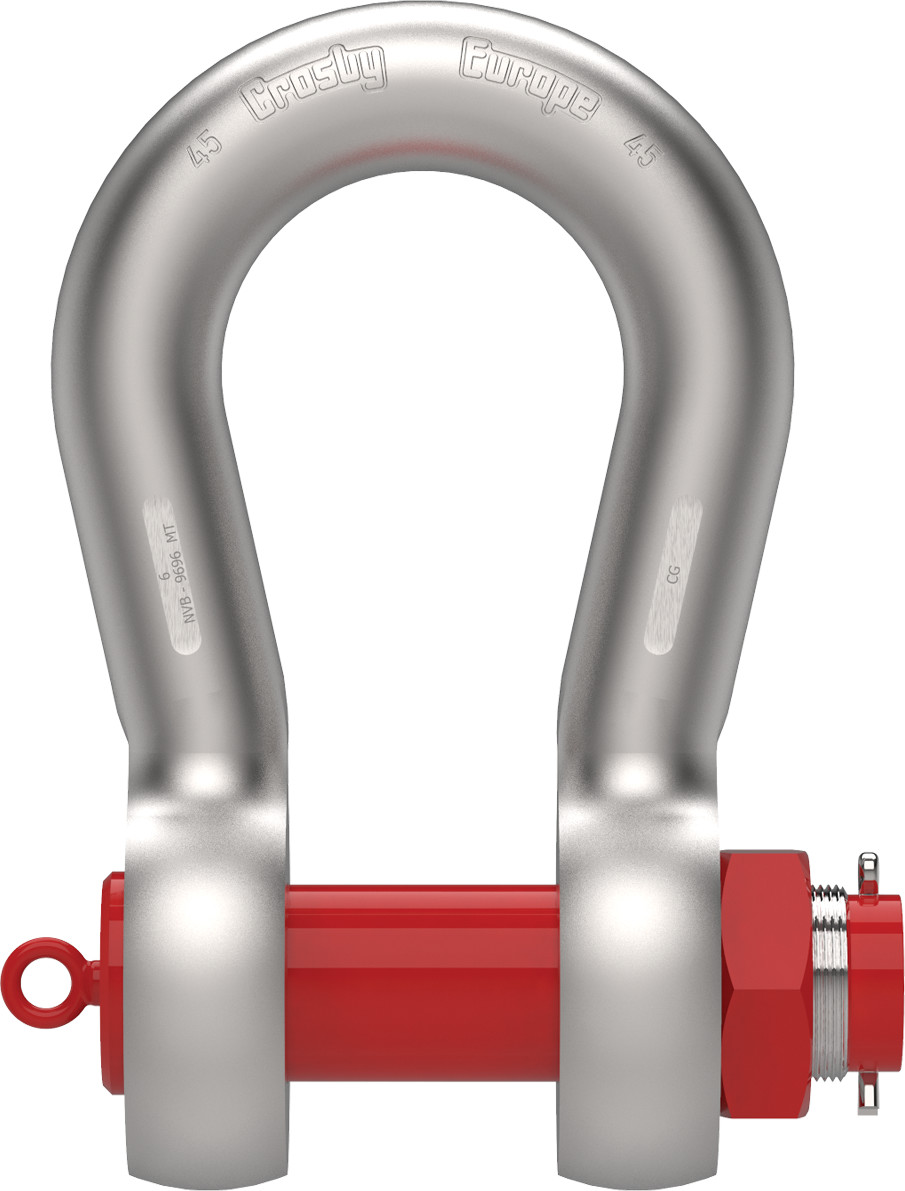

S-2135 / S-2145 Bolt Type Anchor Shackles

S-2135 / S-2145 Bolt Type Anchor Shackles

Product details

• Embossed Angle Indicators included.
• Meets performance requirements of Grade 8 shackles.
• 5:1 Design Factor.
• Individually proof loaded to 2 times the Working Load Limit.
• S-2135 and S-2145 shackles are available with aluminum paint and are not galvanized.
• Operating temperature range -20° C (-4° F) to 200° C (392° F) for S-2135 and S-2145.
• Sizes 500t through 1500t have anti-rotation bolts.
• Material inspection certificate Type 3.1 according to EN 10204.
• DNV type approved: DNVGL-ST-0377 and DNVGL-ST-0378.
• Meets performance requirements of federal specification RR-C-271H, except for those provisions required of the contractor.
• Meets or exceeds all requirements of ASME B30.26.
• S-2135CT COLD TUFF® available in 85t with an operating temperature range of -76°F (-60°C) up to 392°F (+200°C).
• DNV witness proof testing available on request for all sizes and models.
• Magnetic Particle Inspection available on request for all sizes and models.
