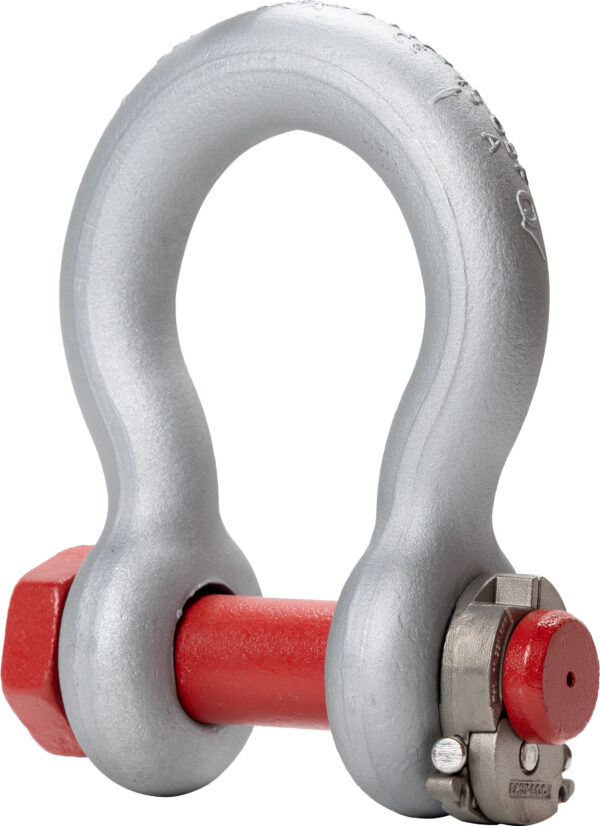

G-2140E Alloy Easy-Loc® Shackles

G-2140E Alloy Easy-Loc® Shackles

Product details

• Quenched & Tempered.
• Alloy bows, alloy bolts.
• Meets performance requirements of Grade 8 shackles.
• Working Load Limit is permanently shown on every shackle.
• Forged alloy steel.
• 30, 40, 55, and 85 metric ton shackle bows are available galvanized (G) with bolts that are galvanized and painted red.
• 120, 150, 175 metric ton shackle bows are hot-dip galvanized; bolts are Dimetcoted and painted red.
• 200 and 250 metric ton shackle bows are Dimetcoted®; Pins are Dimetcoted and painted red.
• Approved for use at -40° F (-40° C) to 400° F (204° C).
• Shackles are Quenched & Tempered and can meet DNV impact requirements of 31 ft-lb (42 Joules) at -4° F (-20° C).
• All sizes are individually proof tested to 2.0 times the Working Load Limit.
• Shackles 200 metric tons and larger are provided as follows:
  • Serialized bolt and bow.
  • Material certification (chemical).
  • Magnetic particle inspected.
  • Certification must be requested at time of order.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
• Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and 2016 ABS Guide for Certification of Lifting Appliances. Certificates available when requested at time of order and may include additional charges.
• G-2140E meets the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade B, Class 3, except for those provisions required of the contractor.
