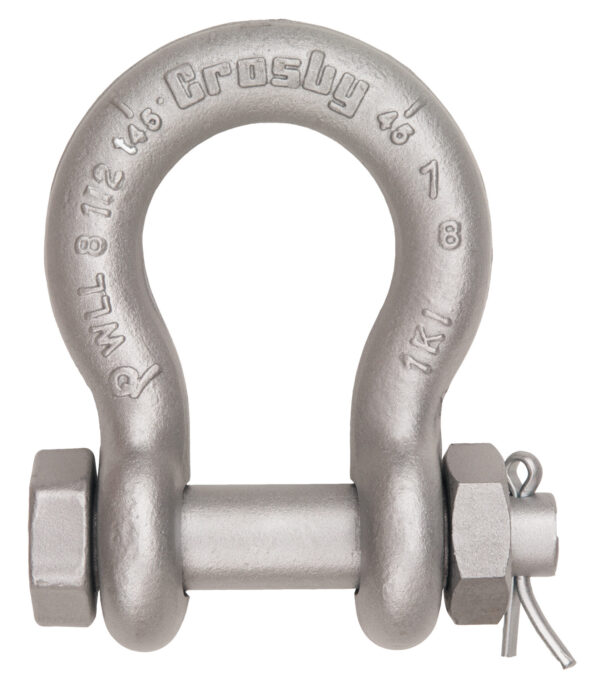

G-2130A Alloy Bolt Type Anchor Shackles Grade 8

G-2130A Alloy Bolt Type Anchor Shackles Grade 8

Product details

• Forged alloy steel, Quenched & Tempered, with bow and bolt.
• Meets or exceeds all requirements of Grade 8 shackles.
• Working Load Limit permanently shown on every shackle.
• Hot-dip galvanized.
• Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements. Importantly, G-2130A meet other critical performance requirements, including impact properties, and material traceability not addressed by ASME B30.26.
• Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order.
• Type Approval and certification in accordance with DNV 2.7-1 offshore containers.
• Shackles are Quenched & Tempered and meet DNV impact requirements of 42 Joules (31 ft-Ib) at -40° C (-40° F).
• G-2130A Bolt Type Anchor shackles with thin head bolt – nut with cotter pin. Meets the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade B, Class 3, except for those provisions required of the contractor.
