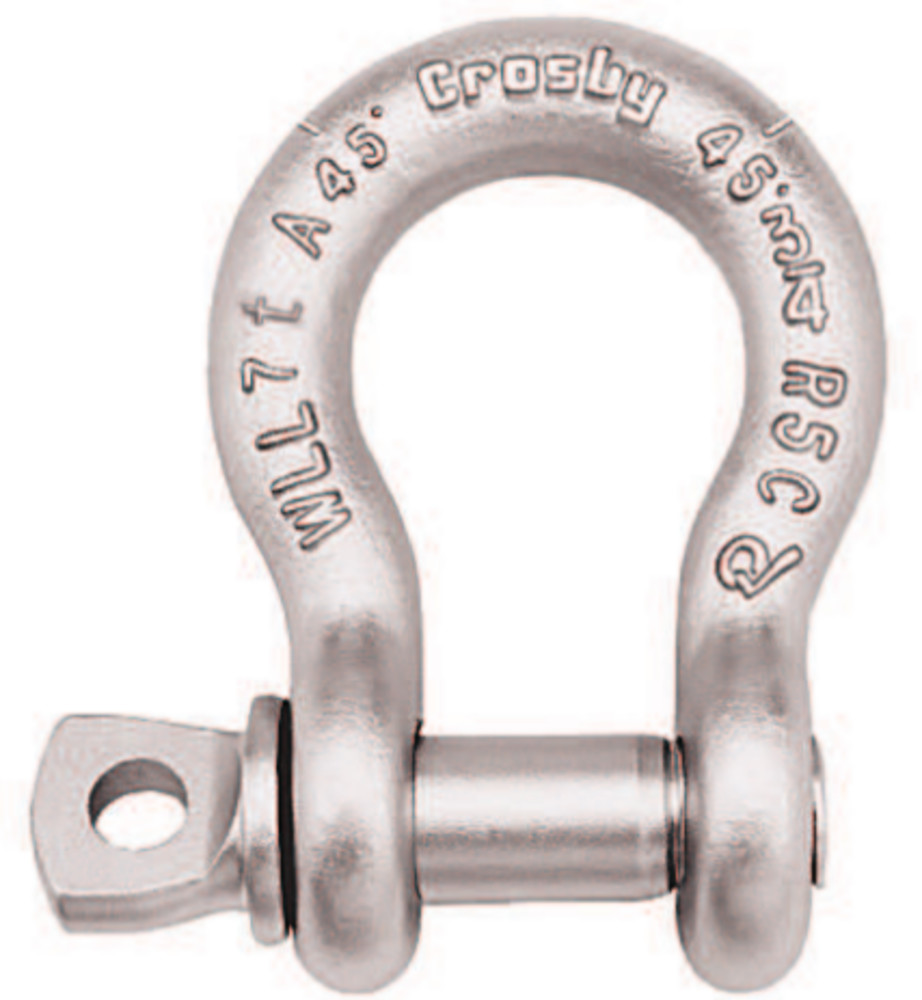

G-209A Alloy Screw Anchor Pin Shackles

G-209A Alloy Screw Anchor Pin Shackles

Product details

• Forged alloy steel, Quenched & Tempered, with alloy pins.
• Meets performance requirements of Grade 8 shackles.
• Working Load Limit permanently shown on every shackle.
• Hot-dip galvanized.
• Size 3/8 inch is mechanically galvanized.
• Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification. Charges for proof testing and certification available when requested at the time of order.
• Approved for use at -40° C (-40° F) to 204° C (400° F).
• G-209A Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade B, Class 2, except for those provisions required of the contractor.
